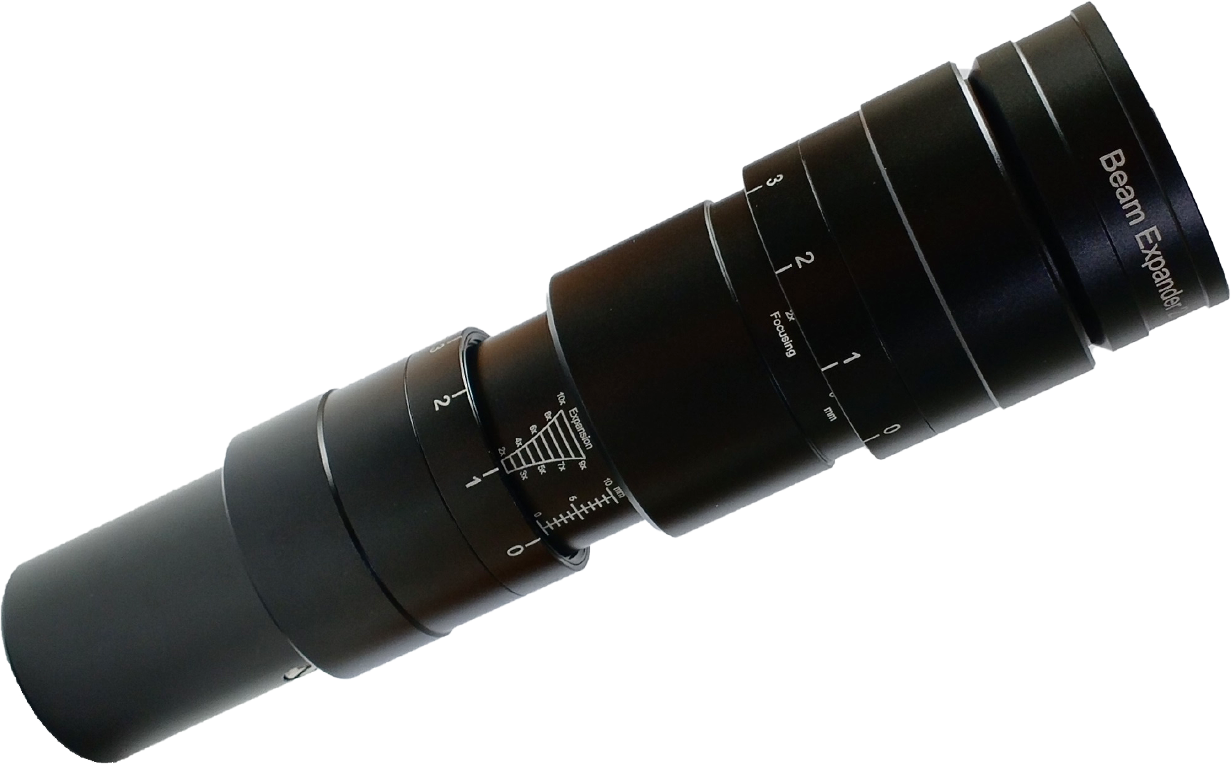

Laser Beam Expander
High power variable laser beam expanders
Features:
Diffraction limit performance
Large magnifcation range
Continuously adjustable
Highest beam pointing stability
High power laser damage threshold
- Expander
- Variable Expander
- UV Expander
- High power Expander
- Laser Material Processing
- UV F-Theta Scan Lens
Specifications
| Model | Wavelength | Magnification | Transmission | Mounting | Weight | Specifications Datasheet |
|---|---|---|---|---|---|---|
| VE-02-1064 | 1030~1080nm | 2X~10X | ≥96% | Ø37.6 (0/-0.1)mm | 221g | Download |
| VE-02-0532 | 525~540nm | 2X~10X | ≥96% | Ø37.6 (0/-0.1)mm | 221g | Download |
| VE-02-0355 | 355nm | 2X~10X | ≥96% | Ø37.6 (0/-0.1)mm | 221g | Download |
Custom requirements and OEM solutions are available, such as magnification, wavelength, entrance pupil, etc.
