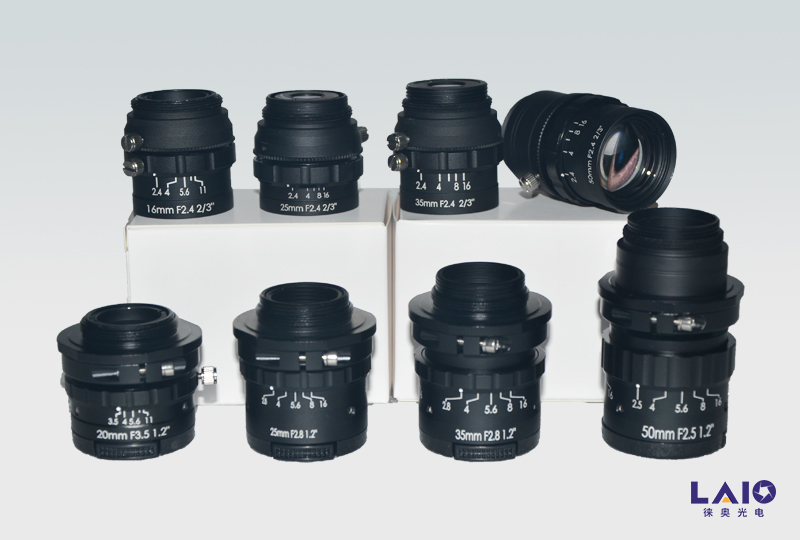

LS Series FA Lenses
The LS Series FA Lenses have 2 types high resolution of 8 Megapixel and 25 Megapixel optimized for sensor 2.74um and a fixed focal length range from 16mm to 50mm.
Features:
High resolution, Cost effective
Compact, Roubust and Light weight
Vero low distortion
All series athermalization for temperature changes application
Custom Anti-shock lens requirements is available
LS Series FA Lenses rapid selection
| Model | Focal Length(mm) | FNO | Max.Image Format(mm) | Working Distance(mm) | Resolution | Mount(mm) | Specifications Datasheet |
|---|---|---|---|---|---|---|---|
| LS1624 | 16 | 2.4~11 | 2/3" | 100 ~ Inf. | 8M | C-Mount | Download |
| LS2524 | 25 | 2.4~16 | 2/3" | 200 ~ Inf. | 8M | C-Mount | Download |
| LS3524 | 35 | 2.4~16 | 2/3" | 200 ~ Inf. | 8M | C-Mount | Download |
| LS5024 | 50 | 2.4~16 | 2/3" | 200 ~ Inf. | 8M | C-Mount | Download |
| LS2035 | 20 | 3.5~11 | 1.2" | 150 ~ Inf. | 25M | C-Mount | Download |
| LS2528 | 25 | 2.8~16 | 1.2" | 150 ~ Inf. | 25M | C-Mount | Download |
| LS3528 | 35 | 2.8~16 | 1.2" | 200 ~ Inf. | 25M | C-Mount | Download |
| LS5025 | 50 | 2.5~16 | 1.2" | 150 ~ Inf. | 25M | C-Mount | Download |
