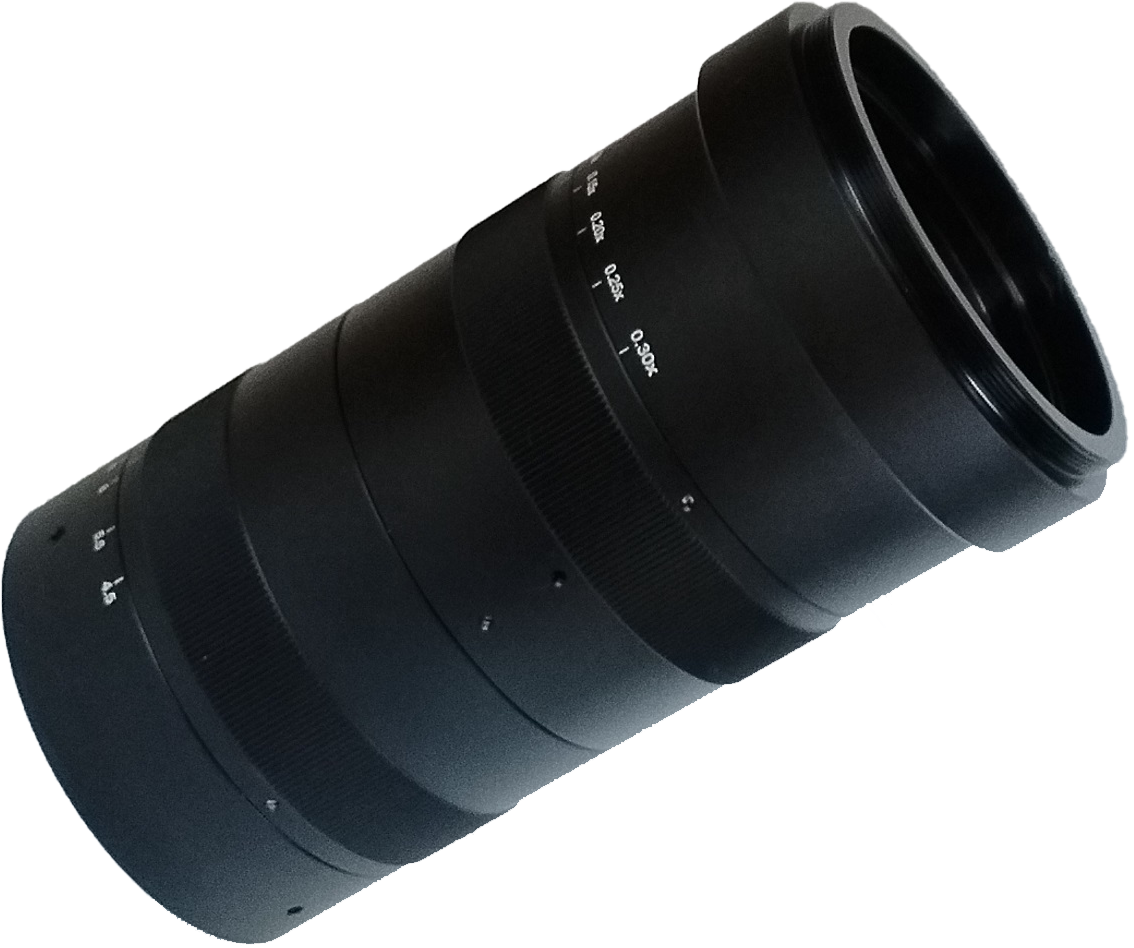

Large Format 151MP Lens
Ø67mm, Excellent uniformity of entire field
Features:
Focal length 87.8mm
Excellent uniformity of entire field
High contrast and high resolution
Magnification 0.01X-0.5X
Large format Ø 67mm
High relative illumination
Custom magnification available
Specifications
| Model | Focal Length | Magnification | F.No | Image Format | Mount | Wavelength | TV Distortion | Weight | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| M-F9045-0103 | 87.8mm | 0.1X~0.3X | 4.5~16 | Ø67mm | M72 | 430nm~670nm | <0.1% | 1215g | Download |
| M-F9045-0305 | 87.8mm | 0.3X~0.5X | 4.5~16 | Ø67mm | M72 | 430nm~670nm | <0.05% | 1215g | Download |
| M-F9045-01 | 87.8mm | 0.01X~0.25X | 4.5~16 | Ø67mm | M72 | 430nm~670nm | <0.3% | 1215g | Download |
Custom requirements and OEM solutions are available, such as magnification, wavelength, focal length, etc.
