Optical Mirrors
LaserOptec offers a variety of optical mirrors, with high quality, performance and reliability. LaserOptec specializes in manufacturing high precision mirror substrates, as well as advanced optical coatings included metallic and dielectric. LaserOptec's optical mirrors are available for use with light in the UV, VIS, and IR spectral regions.
Advanced Coatings on High Quality Substrates
High efficiency reflectivity
Super polished mirror substrates
Low scattering, Low absorption, Enables high strength
Ultra hard dielectric coatings
High damage threshold
Exceptional environmental durability, reliability
Minimum thermal and absorption effects
Variety and widely optical materials from UV, VIS to IR, optical glass, quartz, zerodur, infrared materials and so on
| Typical Specifications | |
|---|---|
| Optical Material | H-K9L, UV Fused Silica, Zerodur, etc. |
| Size | Round and rectangular custom size available |
| Surface quality | 40-20 Scratch-Dig |
| Surface flatness | < 1/4λ |
| Coating | HR, PR, Dielectric Coating, Metallic Coating, Ag, Au, Al, Cr, etc. |
| Clear Aperture | >90% of central dimension |
Applications:
Nd:YAG, Ar-Ion, Kr-Ion, Solid state lasers, Diode lasers, CW and Nanosecond Lasers… etc.
Please contact us for more specific applications for your needs.
- Laser Line Mirrors
- Broadband Dielectric Mirrors
- Metallic Mirrors
- Partial Reflection Mirrors
- Uncoated Mirror Substrates
- Laser Cavity Mirrors
- IR Mirrors
- UV Mirrors
- Si plate with Au coated Mirrors

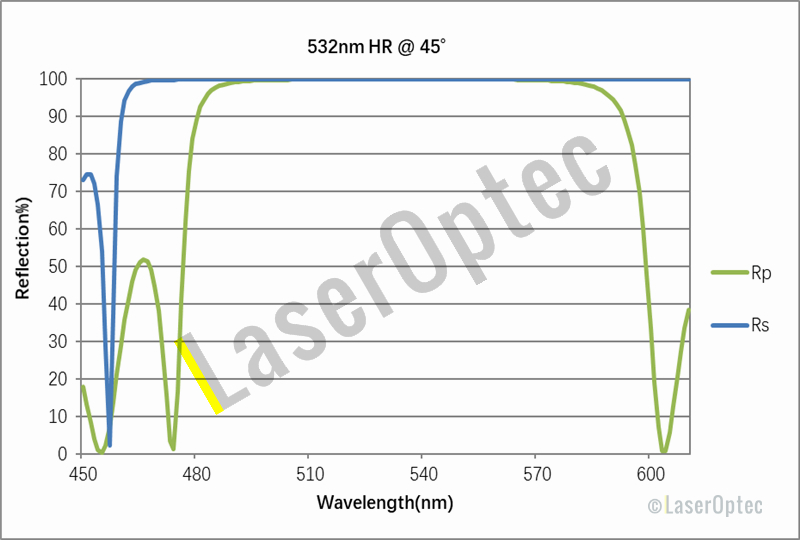

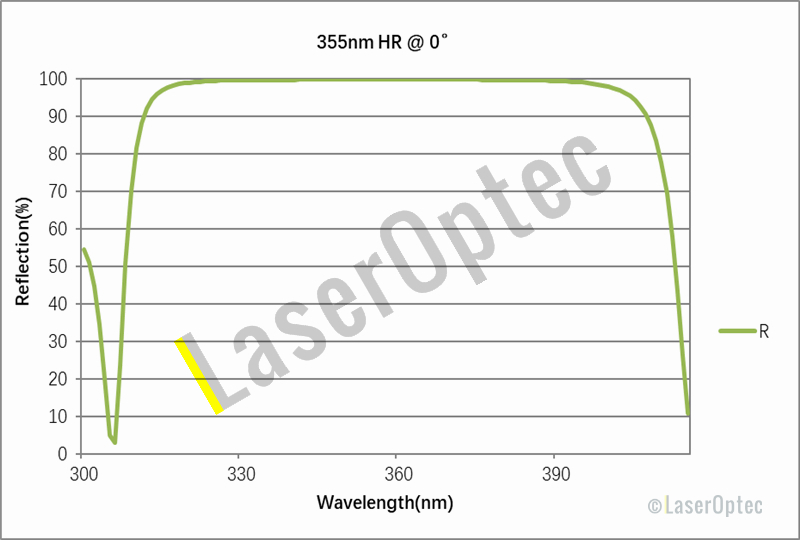

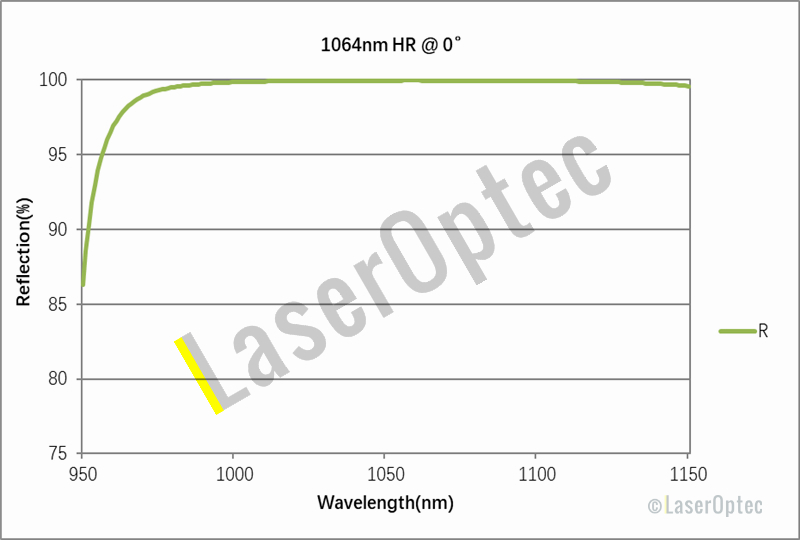

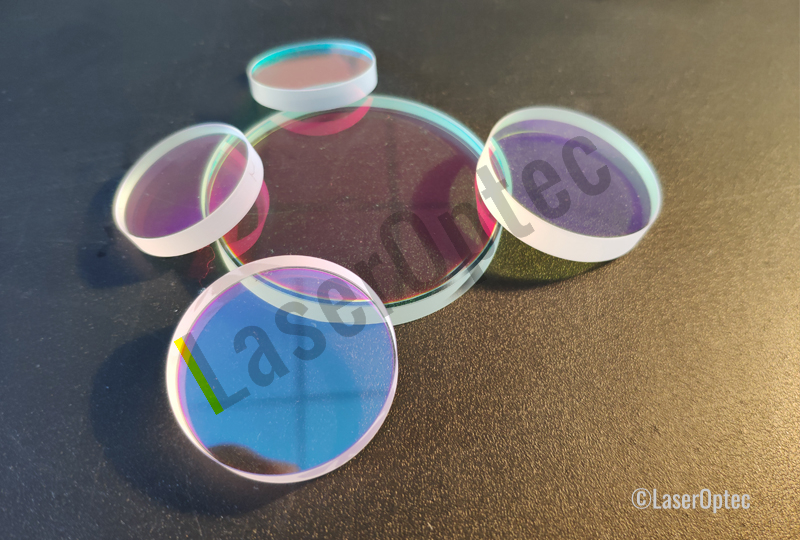

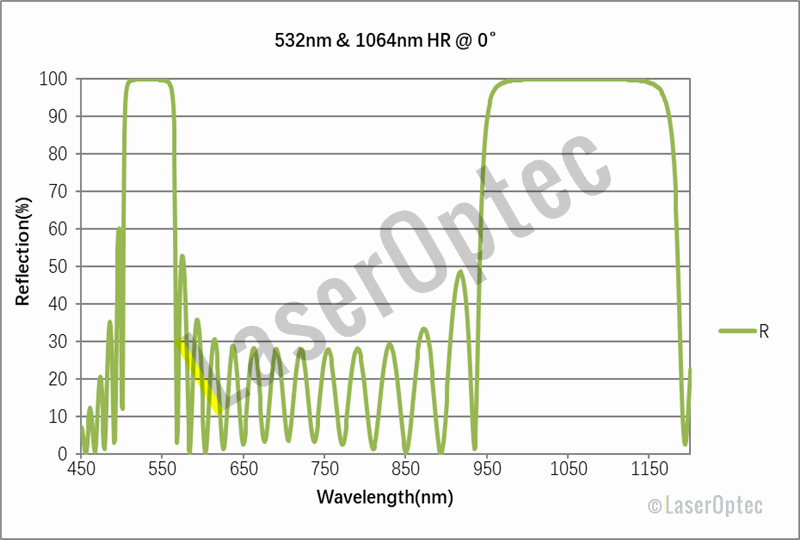

Laser Line Mirrors

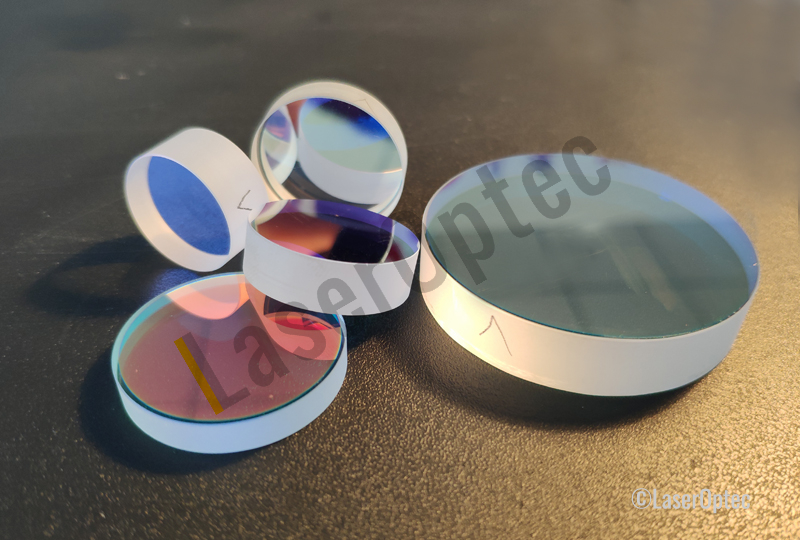

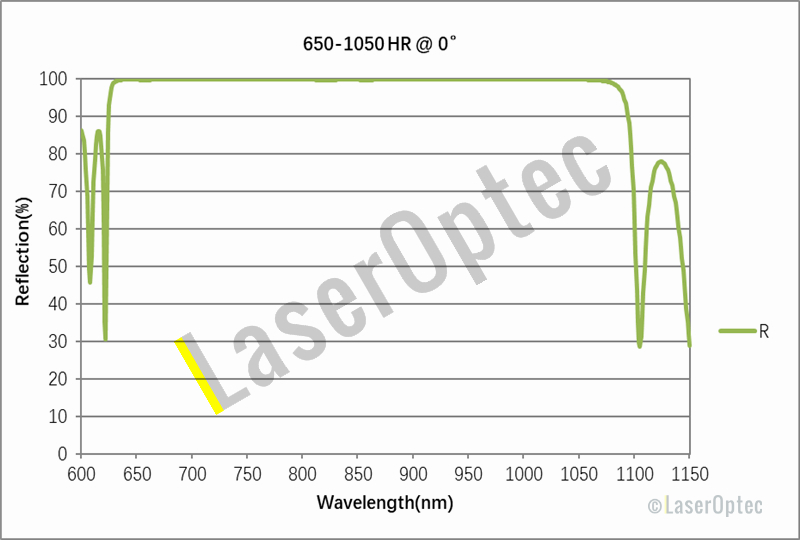

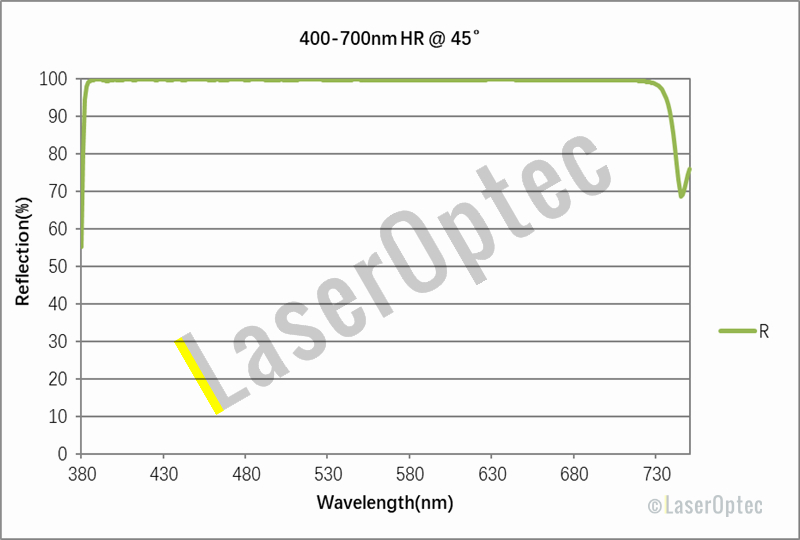

Broadband Dielectric Mirrors

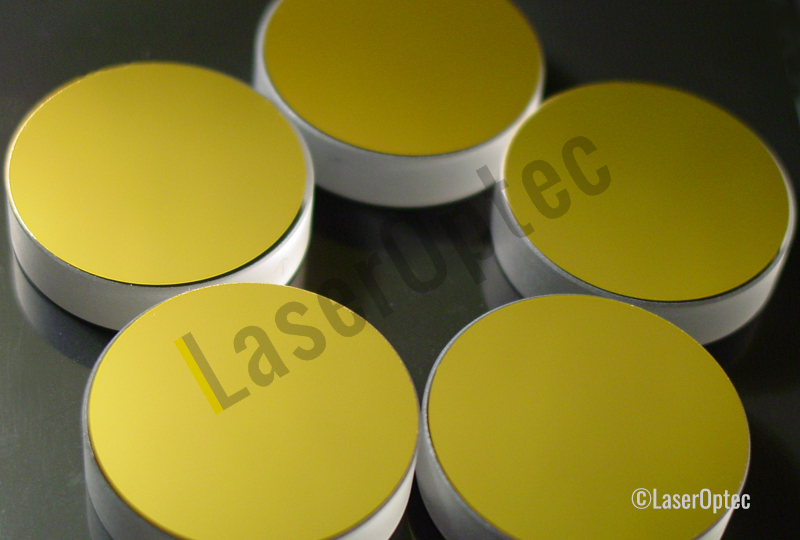

Si plate with Au coated Mirrors

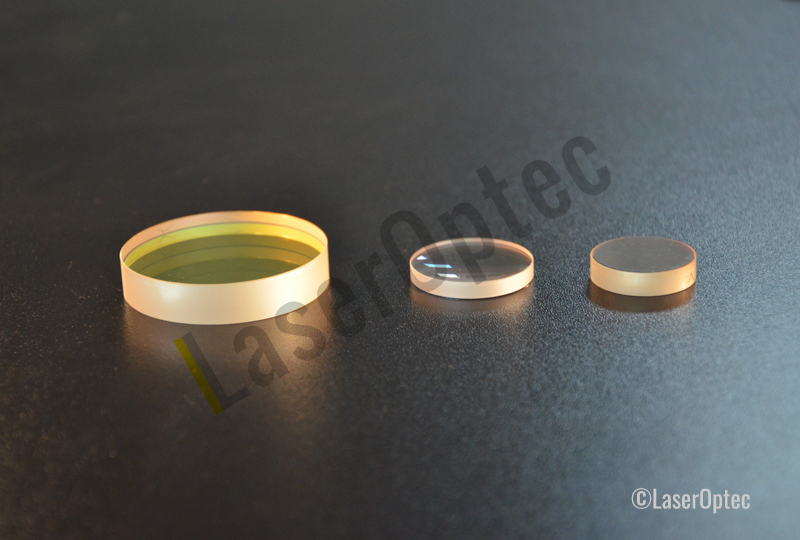

Uncoated Mirror Substrates
| Typical Specifications | |
|---|---|
| Optical Material | N-BK7, UV Fused Silica, Zerodur, etc. |
| Size |
1mm to 300mm Round and rectangular custom size available |
| Surface quality | 10-5 Scratch-Dig |
| Surface flatness | <1/10λ |
| Types |
Plane round mirror blanks Plane rectangular mirror blanks Plane square mirror blanks Plano concave mirror blanks Plano convex mirror blanks Bi-concave mirror blanks Bi-convex mirror blanks Aspheric mirror blanks Cylindrical mirror blanks Abnormal Shapes |
We offer custom specifications and coatings, please contact us for more information.
