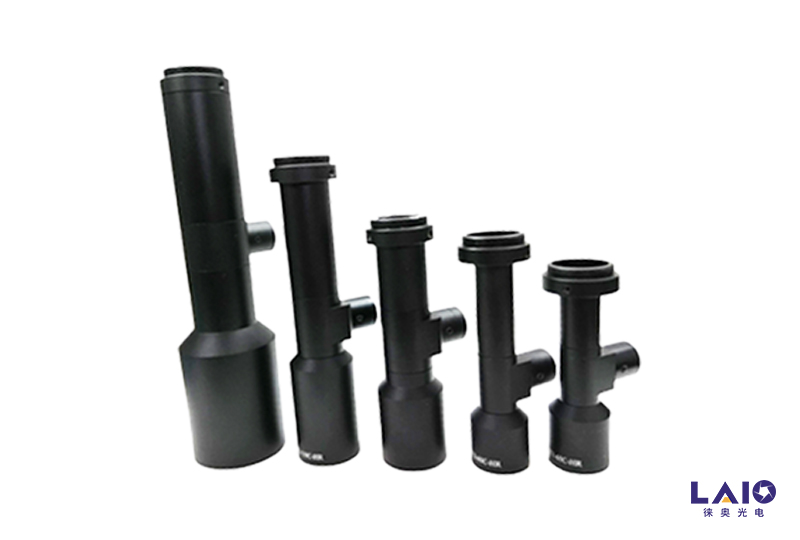

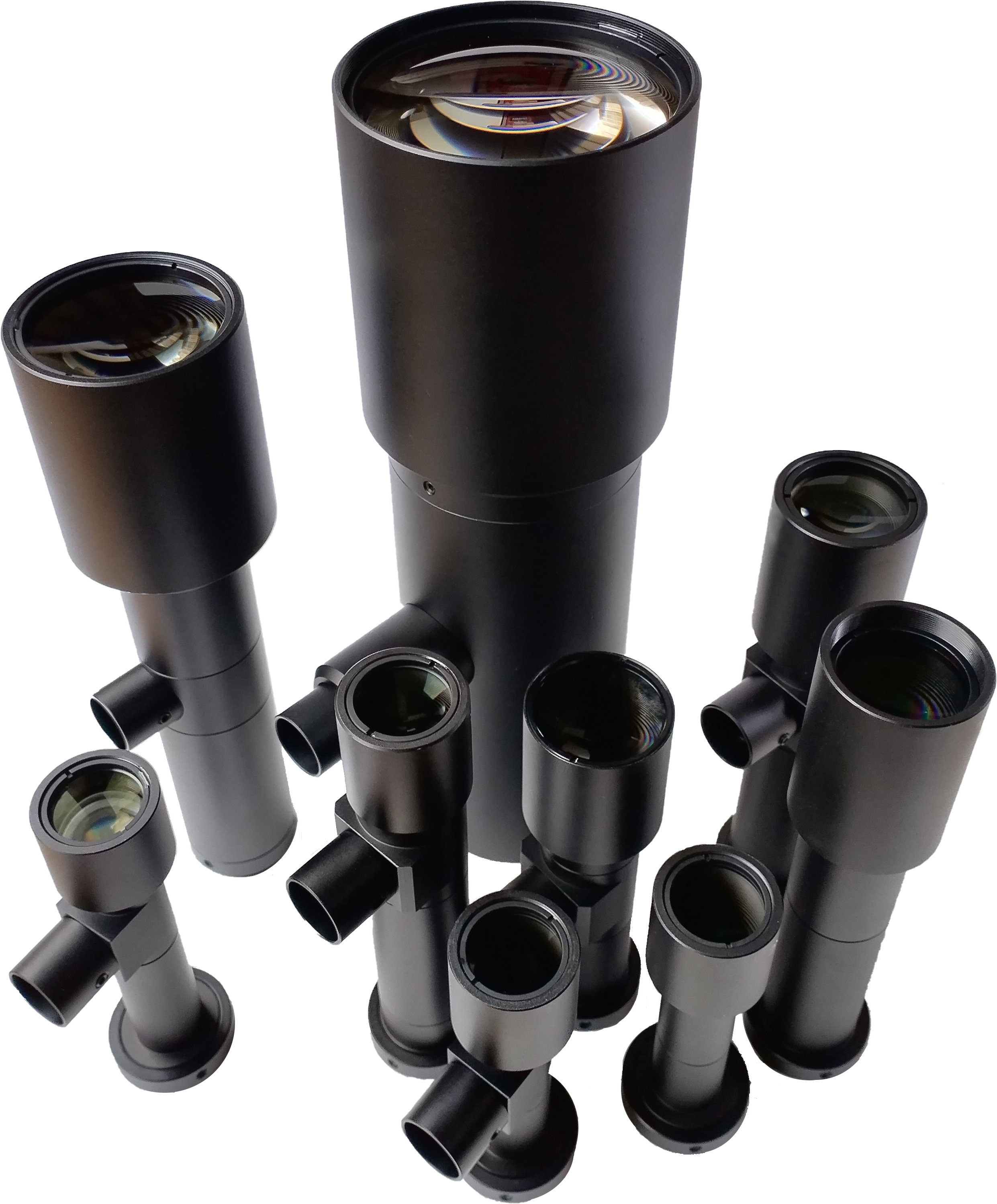

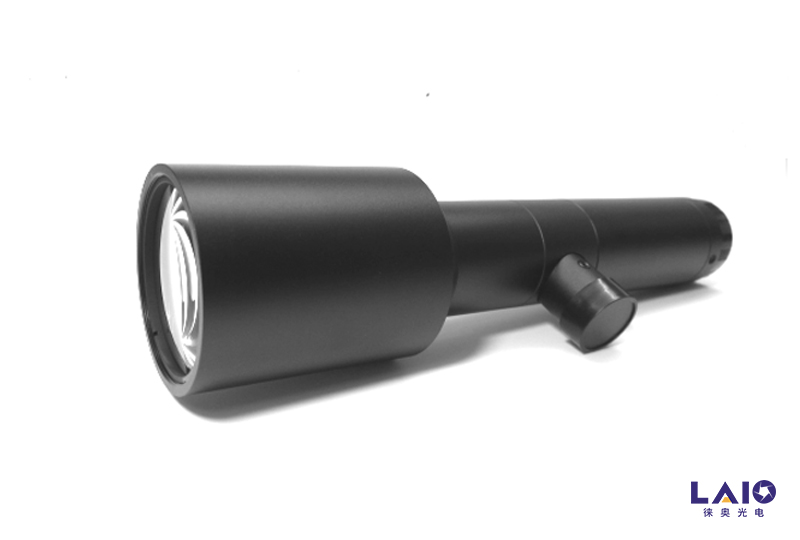

M Series Coaxial Telecentric Lenses
The high quality telecentric lenses of LaserOptec feature high contrast, high resolution, low distortion and uncompromising image qualtiy with optional integrated coaxial illumination that no hot spot, ensure accurate imaging performance for machine vision processes.
We welcome custom requirements and meet your OEM application needs.
Features:
Excellent uniformity throughout the entire field of view
Extremely high resolution at diffraction limit MTF
High contrast
Low distortion
M Series Coaxial Telecentric Lenses rapid selection
| Model | Mag.(X) | O/I(mm) | Resolution | NA | F.NO | DOF(mm) | Distortion | IF(mm) | WD(mm) | Mount(mm) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MOT0.75-19C-ST | 0.75 | 181.03 | 9μm | 0.04 | 12.5 | 1.9 | <0.01% | 1/2" | 19 | C-Mount | Download |
| MOT0.75-19C-ILL | 0.75 | - | 9μm | 0.04 | 12.5 | 1.9 | <0.01% | 1/2" | 19 | C-Mount | Download |
| MOT1.5-30C-HR | 1.5 | 181.8 | 3.5μm | 0.075 | 10 | 0.4 | <0.01% | 2/3" | 30 | C-Mount | Download |

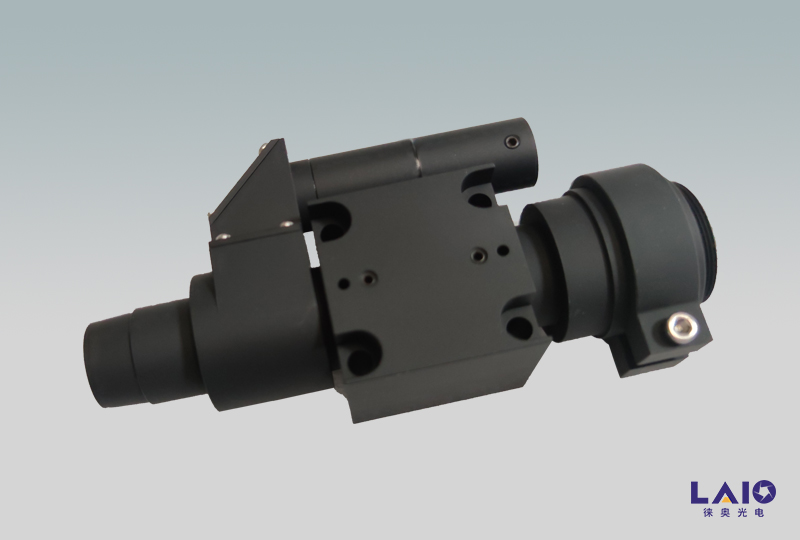

| MOT7.5-18C-HR | 7.5 | 149.23 | 1.7μm | 0.204 | 18.4 | 0.04 | <0.01% | 2/3" | 18 | C-Mount | Download |
| MOT1-65C-HR | 1 | 162.53 | 5.5μm | 0.045 | 11 | 0.88 | <0.01% | 2/3" | 65 | C-Mount | Download |
| MOT3-65C-HR | 3 | 176 | 3.5μm | 0.08 | 18.75 | 0.14 | <0.01% | 2/3" | 65 | C-Mount | Download |
| MOT6-65C-HR | 6 | 202 | 3μm | 0.112 | 26.7 | 0.06 | <0.01% | 2/3" | 65 | C-Mount | Download |
| MOT1-110C-HR | 1 | 257 | 5.5μm | 0.045 | 11 | 0.88 | <0.01% | 2/3" | 110 | C-Mount | Download |
| MOT2-110C-HR | 2 | 257 | 3.7μm | 0.074 | 13.5 | 0.27 | <0.01% | 2/3" | 110 | C-Mount | Download |
| MBT05-160C-HR | 0.5 | 345 | 7μm | 0.042 | 6 | 2.1 | <0.01% | 2/3" | 160 | C-Mount | Download |
| MOT1-SR65C-16 | 1 | 185 | 3.5μm | 0.075 | 6.65 | 0.56 | <0.03% | 1" | 65 | C-Mount | Download |
| MOT1-130C-35F | 1 | 385 | 4.4μm | 0.077 | 6.5 | 0.56 | <0.03% | Ø35 | 130 | F-Mount | Download |
| MOT6-NIR-80 | 6 | 240 | 4μm | 0.15 | 20.1 | 0.03 | <0.01% | 2/3" | 80 | C-Mount | Download |
Custom requirements and OEM solutions are available, such as magnification, wavelength, focal length, working distance, FOV, etc.
