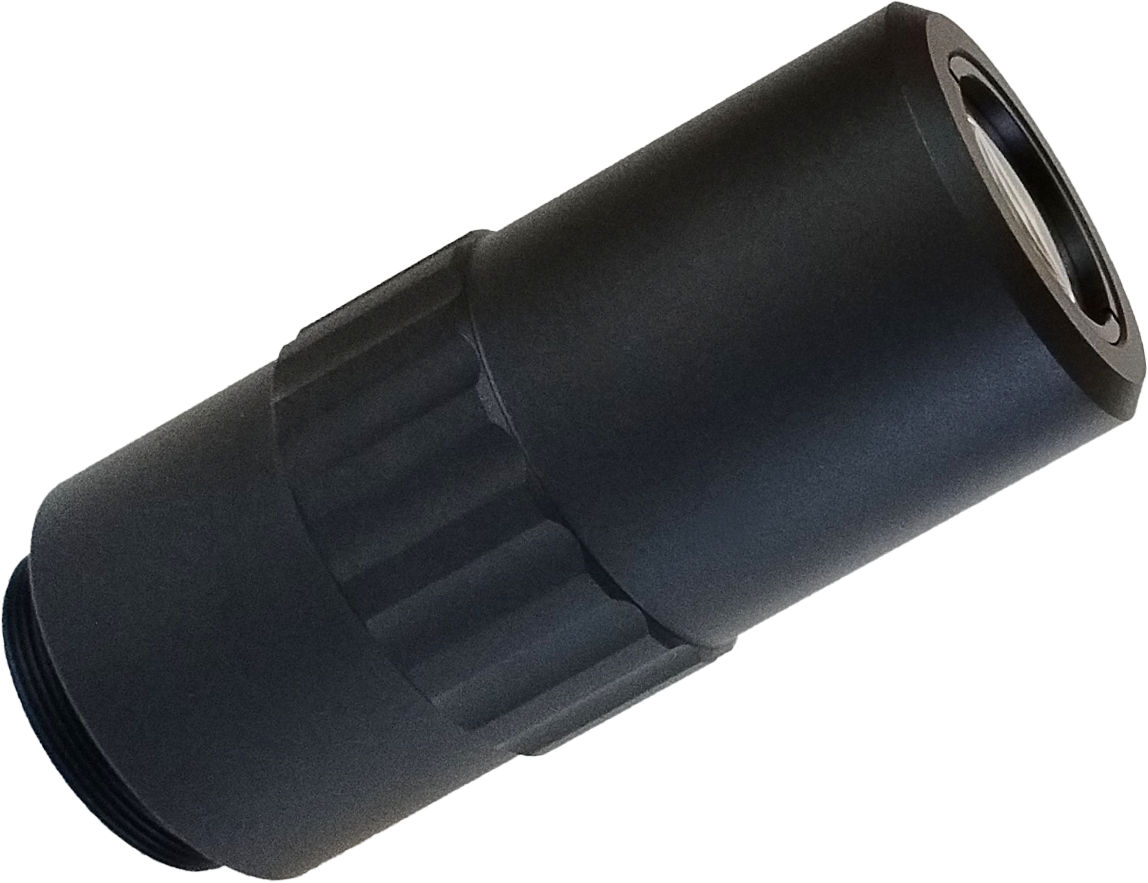

Objective
Super long working distance
Features
Infinity corrected
Large field of view
Long working distance
Plan apochromat
Ultra high brightness
Specifications
| Model | Focal Length | Magnification | NA | Field of View | Mount | Wavelength | Working Distance | Resolution | Depth of Field | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| MC-LD-2X | 100mm | 2X | 0.055 | Ø16.5mm | M26x0.706 | 430nm~670nm | 25mm | 5.0μm | ±91μm | Download |
| MC-LD-5X | 40mm | 5X | 0.14 | Ø6.6mm | M26x0.706 | 430nm~670nm | 35mm | 2.0μm | ±14μm | Download |
| MC-LD-10X | 20mm | 10X | 0.28 | Ø3.3mm | M26x0.706 | 430nm~670nm | 34mm | 1.0μm | ±3.5μm | Download |
Custom and OEM requirements are available, such as magnification, wavelength, FOV, etc.
