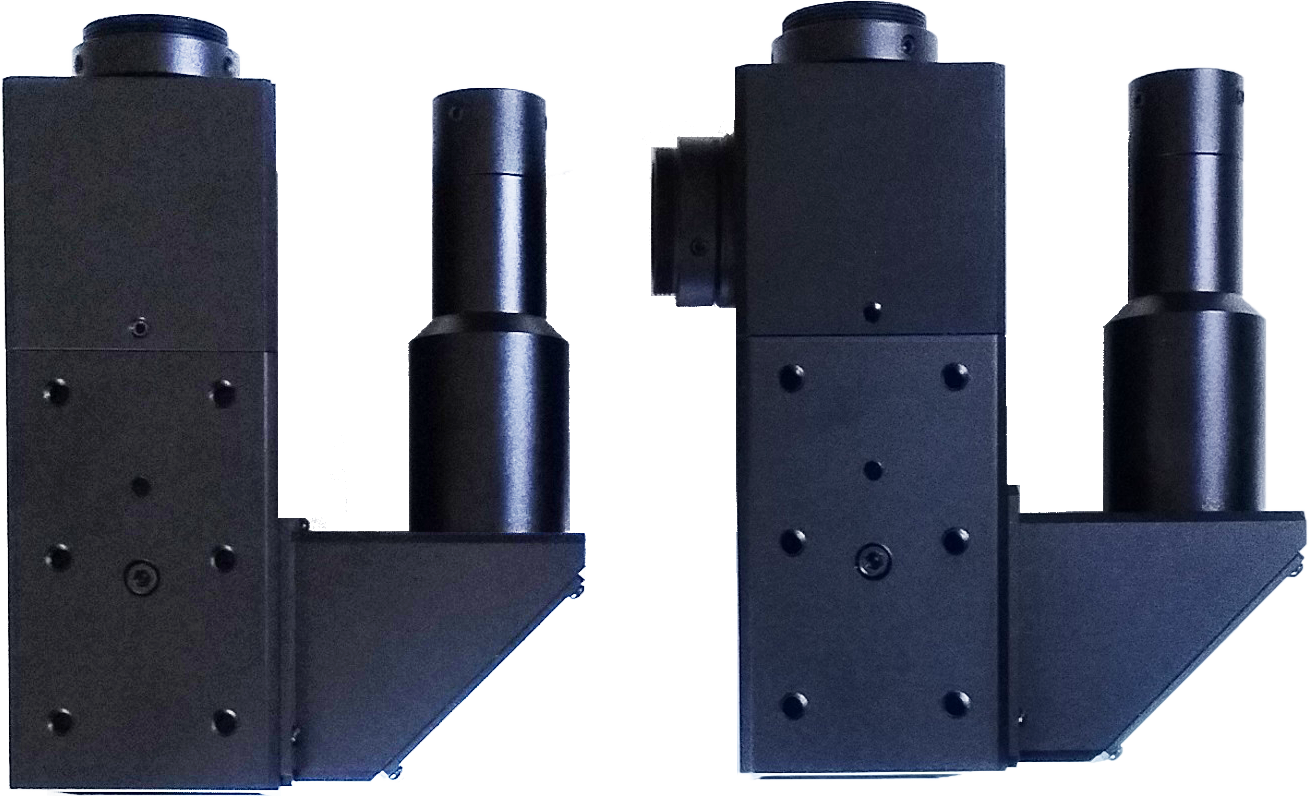

Video Microscope Unit
Microscope tube with large entrance pupil and diffraction limit performance
Features:
Focal length 100mm/200mm
Diffraction limit performance
Telecentric illumination
Compact, light-weight, rigidity
Dual camera applicaiton
Customized available
Specifications
| Model | Focal Length | Magnification | Image Format | Mount | Wavelength | Weight | Specifications Datasheet |
|---|---|---|---|---|---|---|---|
| VMU-100-16D | 100mm | 0.5X | Ø16mm | Dual C-Mount (Dual cameras) | 430nm~670nm | 809g | Download |
| VMU-100-16S | 100mm | 0.5X | Ø16mm | C-Mount | 430nm~670nm | 779g | Download |
| VMU-200-33S | 200mm | 1.0X | Ø33mm | F-Mount / M58 | 430nm~670nm | TBC | Download |
| VMU-200E-33D | 200mm | 1.0X | Ø33mm | Dual M58 (Dual cameras) | 430nm~670nm | TBC | Download |
Custom requirements and OEM solutions are available, such as dual-camera, laser, focal length, double magnification(high & low), wavelength UV, VIS, IR, etc.
