WD110 Series Bi-Telecentric Lenses
High Resolution Bi-Telecentric lenses, machine vision for recognition, mounting, alignment, inspection
WD110 Series Bi-Telecentric Lenses are specially designed for 110m working distance with 4 common magnifications of 0.3X, 0.5X, 0.7X, 1X.
Features:
Bi-telecentric lens, high resolution
WD110mm, 4 common magnifications
Max image format 2/3", C-Mount
WD110 Series Bi-Telecentric Lenses rapid selection
| Model | Type | Mag.(X) | FNO | Telecentricity |
Depth of Field(mm) |
Distortion | Resolution |
Max.Image Format(mm) |
WD(mm) | Mount(mm) |
Specifications Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WD110-0.3X | Bi-telecentric | 0.3 | F8 | <0.02° | 6.5 | 0.08% | 11.7μm | 2/3" (Ø11) | 110±3% | C-Mount | Download |

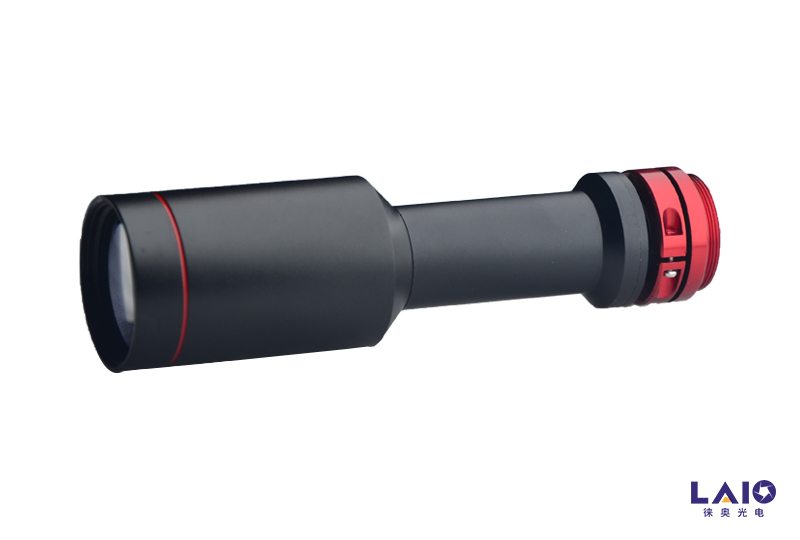

| WD110-0.5X | Bi-telecentric | 0.5 | F8 | <0.04° | 4.5 | 0.05% | 7μm | 2/3" (Ø11) | 110±3% | C-Mount | Download |

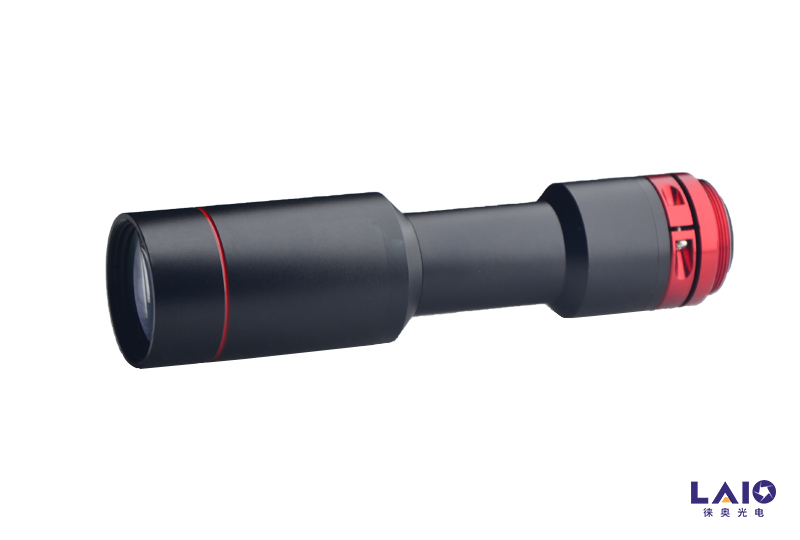

| WD110-0.7X | Bi-telecentric | 0.7 | F8 | <0.04° | 3.0 | 0.03% | 5μm | 2/3" (Ø11) | 110±3% | C-Mount | Download |

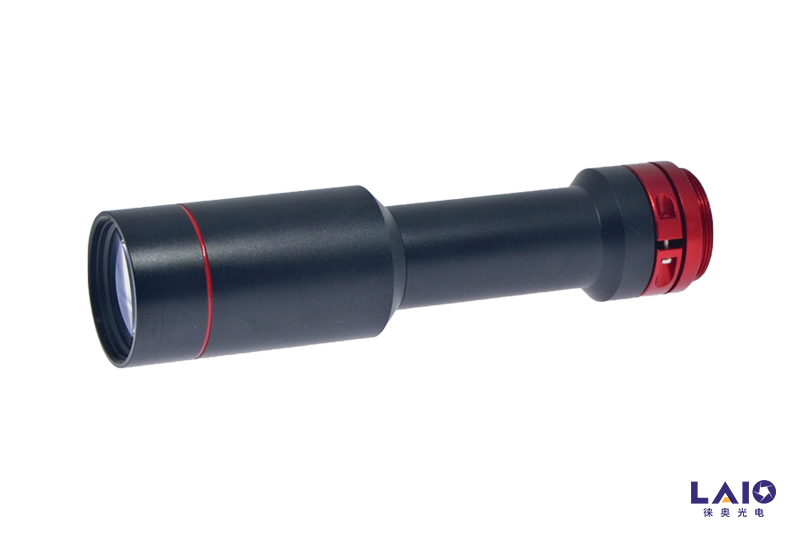

| WD110-1.0X | Bi-telecentric | 1.0 | F8 | <0.06° | 1.5 | 0.01% | 3μm | 2/3" (Ø11) | 110±3% | C-Mount | Download |
