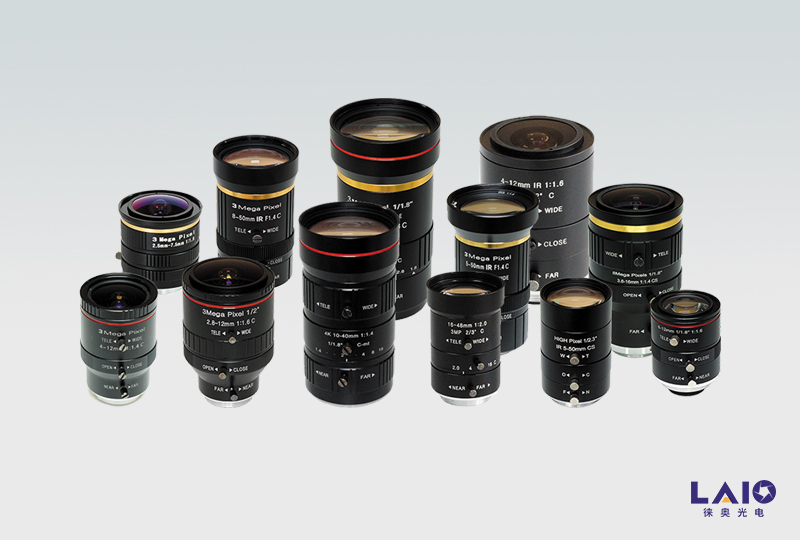

Zoom Lenses
LaserOptec offers an extensive selection of manual zoom lenses which have a variable angle of view for the application of machine vision, security, robotics, etc.
Features:
Cost effective
Machine vision, Security, Robotics
Compact, Robust
High Resolution
Variable focal lengths
FZ Series Zoom Lenses rapid selection
| Model | Focal Length(mm) | FNO | Max.Image Format(mm) | Working Distance(mm) | Resolution | Mount(mm) | Specifications Datasheet |
|---|---|---|---|---|---|---|---|
| FZ025075 | 2.5~7.5 | 1.8 | 1/1.3"~1/2.7" | 300 ~ Inf. | 3M | CS-Mount | Download |
| FZ0550 | 5~50 | 1.4 | 1/2.5" | 250 ~ Inf. | 3M | CS-Mount | Download |
| FZ0550MN | 5~50 | 1.4 | 1/2.3" | 200 ~ Inf. | 3M | CS-Mount | Download |
| FZ0850 | 8~50 | 1.4 | 1/2.3" | 500 ~ Inf. | 3M | C-Mount | Download |
| FZ02812 | 2.8~12 | 1.6 | 1/2" | 300 ~ Inf. | 3M | C-Mount | Download |
| FZ0412-2 | 4~12 | 1.6 | 1/2" | 200 ~ Inf. | 2M | C-Mount | Download |
| FZ0412-3 | 4~12 | 1.4 | 1/2" | 400 ~ Inf. | 3M | C-Mount | Download |
| FZ0612 | 6~12 | 1.6 | 1/1.8" | 300 ~ Inf. | 3M | C-Mount | Download |
| FZ1040 | 10~40 | 1.4~16 | 1/1.8" | 500 ~ Inf. | 8M | C-Mount | Download |
| FZ12120 | 12~120 | 1.8~16 | 1/1.8" | 1200 ~ Inf. | 3M | C-Mount | Download |
| FZ03816 | 3.8~16 | 1.4~360 | 1/1.8" | 250 ~ Inf. | 8M | CS-Mount | Download |
| FZ1648 | 16~48 | 2.0 | 2/3" | 200 ~ Inf. | 3M | C-Mount | Download |
