Industrial Line Scan Lenses

For Highest Quality Built to Last

Features
These high-resolution, high-speed lenses are optimized for the use of 8k pixel line scan sensors.
The image circles of up to 60 mm meet the length of currently available 8k 7┬Ám CCD/ CMOS lines.
High resolution, MTF up to 100lp/mm
Nearly zero distortion ensures the accuracy of measurement.
F mount, M42, M58, M72, V mount
Even image quality and consistent illumination from the center to the edge of the image.
Available for most of the large-format line scan cameras in the market.

Applications
Industrial line scan CCD camera
Please contact us for more specific applications for your needs.




Model Focal Length F# Image Circle Magnification Transmission Mount

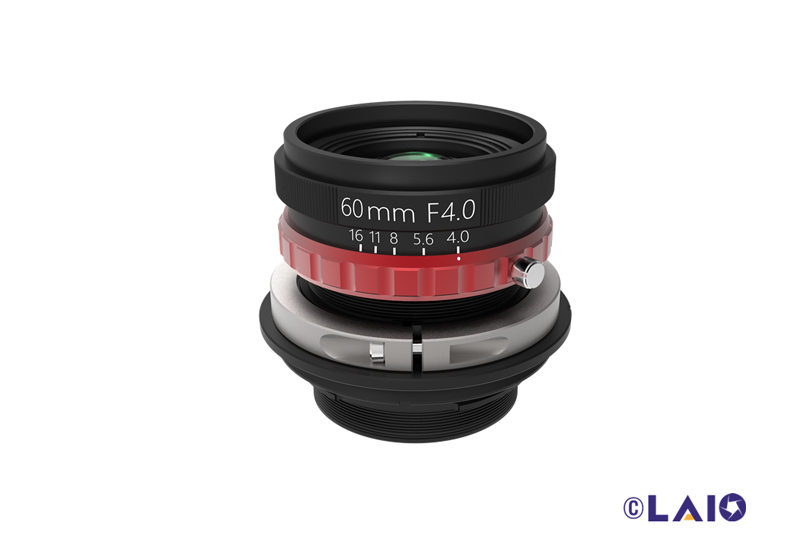

LS60/4.0 0275 60mm 4-22 60mm 0.2x-0.75x 400-700nm F-mount
LS60/4.0 00402 60mm 4-22 60mm 0.04x-0.2x 400-700nm F-mount

Please contact us for specifications sheets, thank you.
